VIBRATION-ISOLATED CLAMPING TABLES

CFM Schiller produces vibration-isolated clamping tables for test rigs with small assemblies and dimensions.

The table’s framework is designed as a stable steel weldment comprising hollow profiles. The table top is made of either steel or granite and can be produced with T-slots according to DIN 650 or with predefined threaded holes.

The table top is supported through air springs type MAS. The control of the vibration isolation is realized by the mechanical CFM Level Control MC 300-MAS. The natural frequency of the implemented vibration isolation ranges from 2.1 Hz to 2.5 Hz, depending on the used air springs.

CFM Schiller adapts the table top to your needs regarding size and stiffness, depending on the requirements.

Vibration-isolated clamping table with air springs type MAS and level control system MC 300-MAS

Vibration-isolated clamping table with air springs type MAS and level control system MC 300-MAS

Vibration-isolated clamping table

Vibration-isolated clamping table

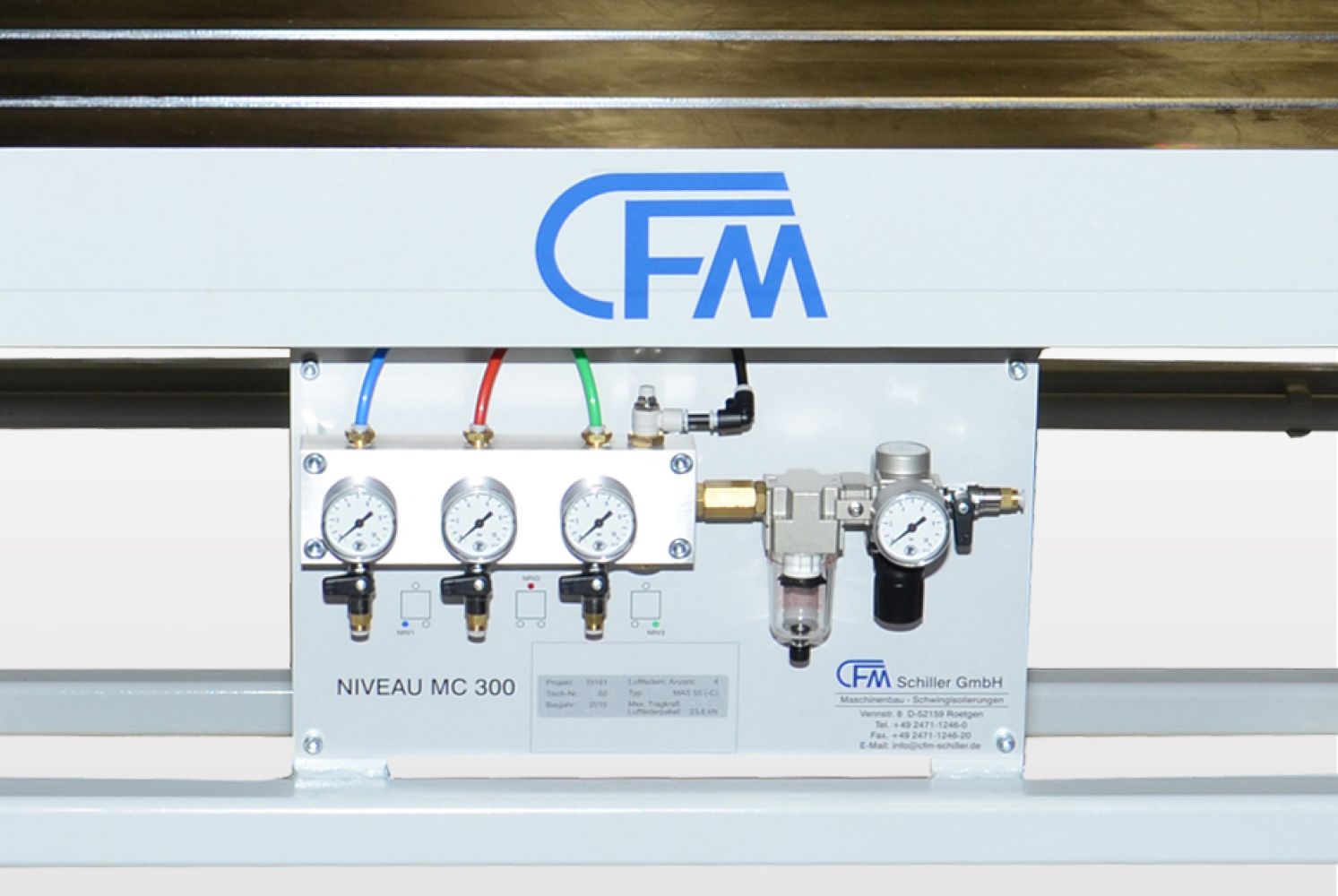

Vibration-isolated clamping table with level control system

Vibration-isolated clamping table with level control system

Vibration-isolated clamping table with air springs type MAS

Vibration-isolated clamping table with air springs type MAS
