PREFABRICATED FOUNDATIONS

Prefabricated foundations are small seismic masses as fully finished components made of concrete – with or without clamping plate. CFM Schiller manufactures prefabricated foundations with a maximum weight of 35 t and a width of up to 3 000 mm.

Seismic masses as prefabricated components offer the following advantages:

  • No construction activity or concrete works on your premises
  • Short installation time onsite
  • Integration of the anchoring system is carried out in-house at CFM Schiller. This is more cost-effective compared to doing so in your facilities
  • No additional onsite curing time
  • Can be transported to another location anytime - a major advantage in terms of flexibility
  • Clean, smooth and cost-effective concrete surfaces thanks to system formwork
  • Good damping properties
  • Precise surface with high load-bearing capacity thanks to the cast iron or steel clamping plates or base plates
  • The foundations are equipped with the necessary lifting eyes making it possible to easily transport them into your building
Prefabricated foundation for 2-axial servo-hydraulic test rig

Prefabricated foundation for 2-axial servo-hydraulic test rig

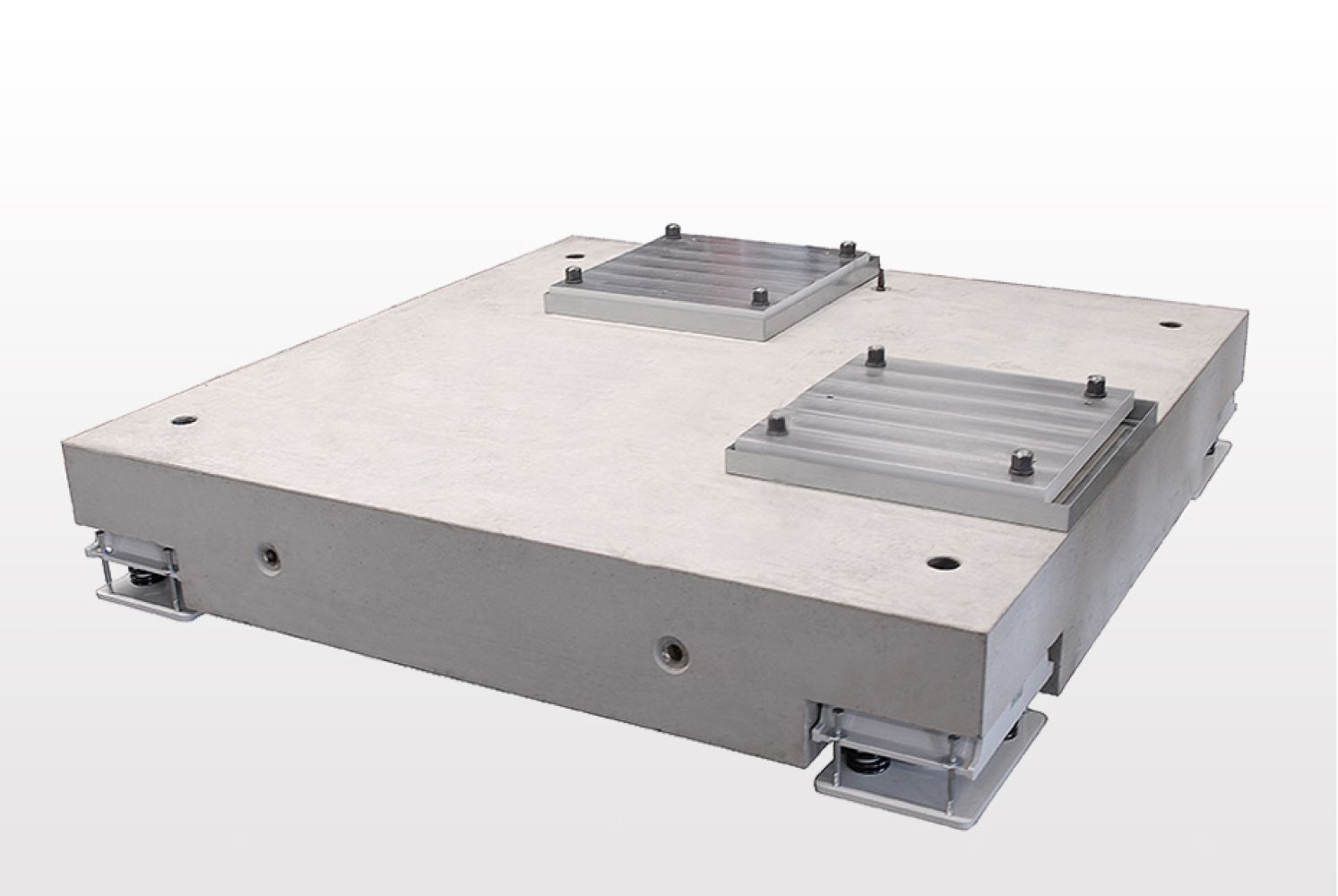

Prefabricated foundation with steel spring isolators

Prefabricated foundation with steel spring isolators

Prefabricated foundation for electro shaker

Prefabricated foundation for electro shaker

Prefabricated foundation with clamping plate

Prefabricated foundation with clamping plate
