Load Measuring Platform 2.3 MN

CFM has successfully built, calibrated and commissioned a large 3 DOF Load Measuring Platform for extreme loads of

Z - Axis 2.300 KN

X - Axis 400 KN

Y - Axis 700 KN

This measuring platform comes with a measuring load amplifier. The platform is designed to measure compressive loads in 3 directions and was originally built to calibrate a Static Large Offroad Tire System.

Size of the measuring platform: 2.350 x 2.150 x 460 mm
Weight: 9.800 kg

The measuring platform has a measuring accuracy of 1 % on full scale.

The platform can be rented at CFM.

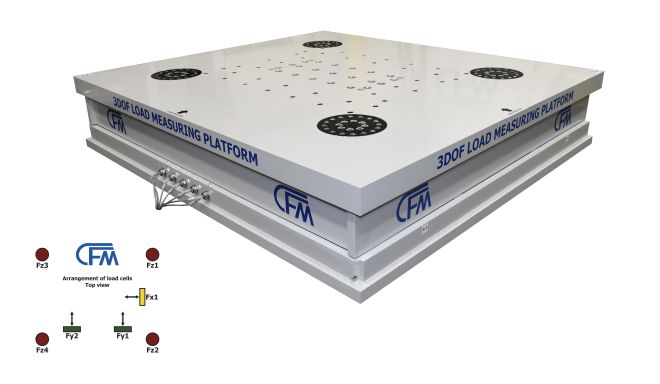

Load Measuring Platform 2.3 MN with Arrangement of load cells
