Clamping Rails

with T-Slots according to DIN 650

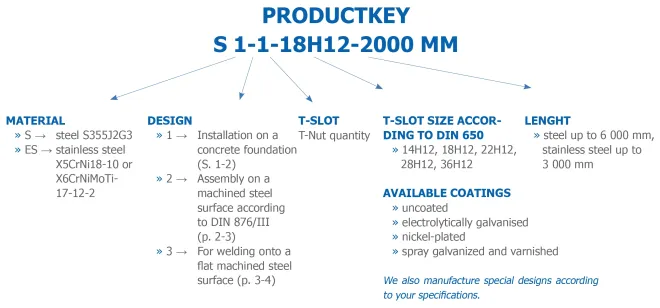

General Information

Clamping rails are an alternative fastening element to clamping plates if only a few T-slots are required. Depending on the application, CFM Schiller off ers clamping rails in specific designs and in various materials. Clamping rails are available with single or double slots.



Available Coatings

  • uncoated
  • electrolytically galvanised
  • nickel-plated
  • spray galvanized and varnished

We also manufacture special designs according to your specifications.

Design S1

For mounting on a concrete foundation using an anchoring construction or stone bolts according to DIN 529

  • head sides and top side are machined according to DIN 876/III
  • side and bottom surfaces are untreated
  • for under pouring or pouring (embedded in soil)
  • T-slots according to DIN 650
  • T-slot(s) with lifting pocket(s) at both ends
  • lengths up to 6 000 mm

CFM offers different kinds of anchoring systems for the fixation of the t-slot rails to a concrete floor or foundation.

Single Slot

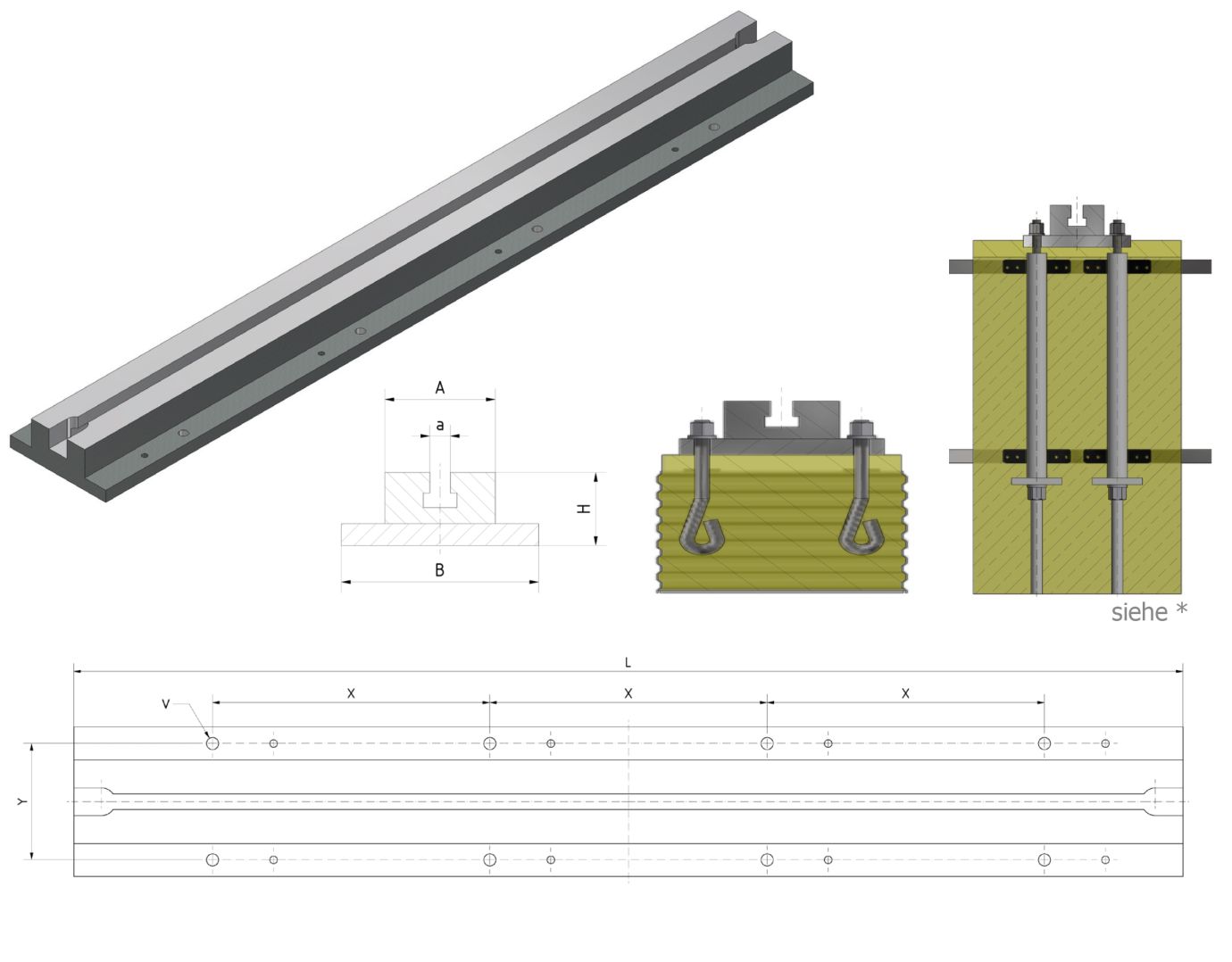

Design S1-1

T-slot according to DIN 650Width A [mm]Width B [mm]Height H [mm]Bolt size
Drilling distance X [mm]Drilling distance Y [mm]Weight [kg/m]
14 H127014060M1050015043
18 H128017075M1250012562
22 H1210021075M1650015572
28 H12*151270100M20500210132
36 H12*160320125M24500240178

*can only be fastened with CFM anchoring construction.

Double Slot

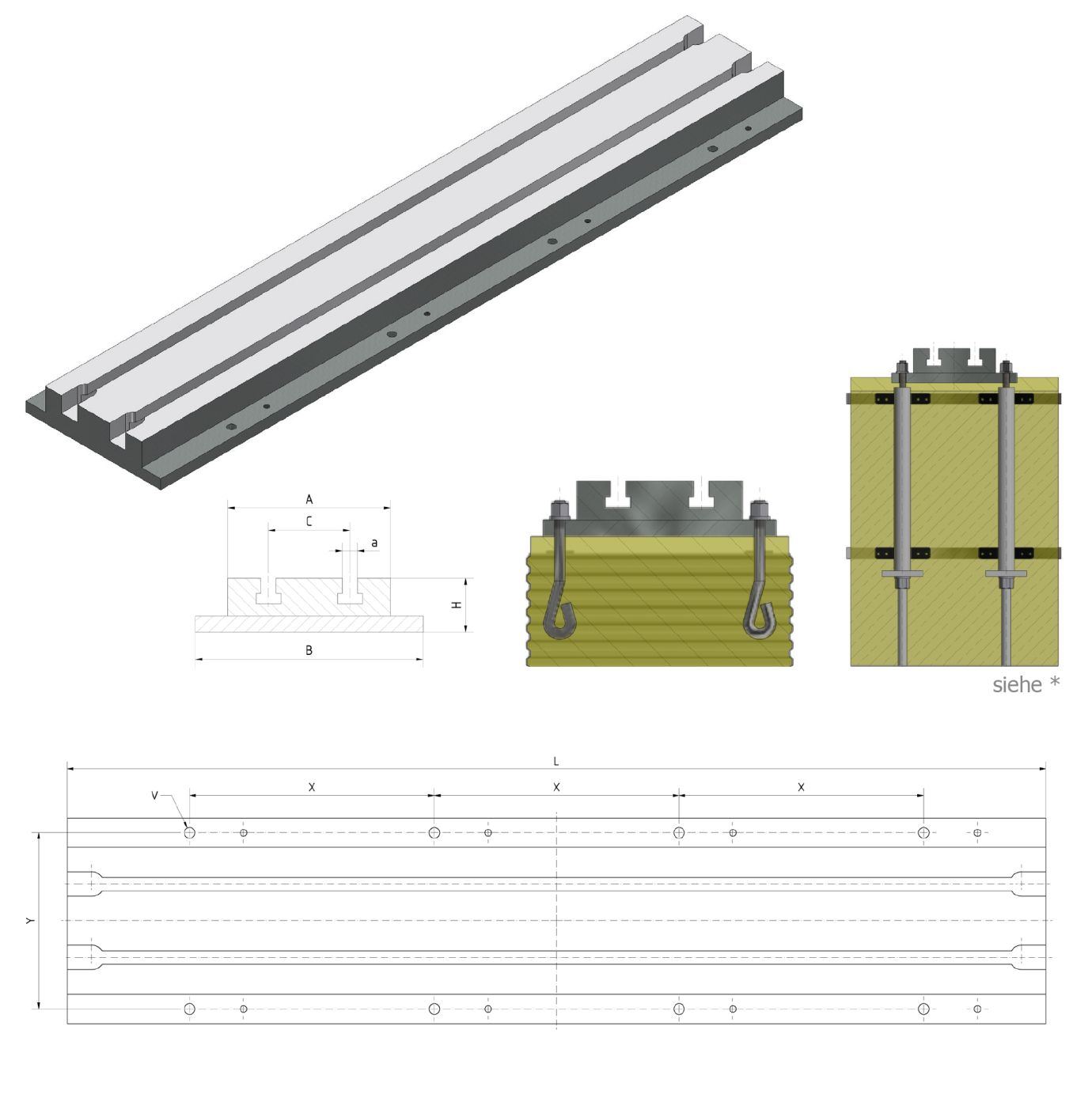

Design S1-2

T-Slot according to DIN 650Width A [mm]Width B [mm]Height H [mm]Slot distance C [mm]Bolt size
Drilling distance X [mm]Drilling distance Y [mm]Weight [kg/m]
14 H121401906070M1050017567
18 H121602207580M1250020595
22 H1220028075100M16500255116
28 H12*300400100150M20500360232
36 H12*320450125150M24500380305

*can only be fastened with CFM anchoring construction.

Design S2

For mounting on a steel surface machined according to DIN 876/III

  • for screwing: sides
  • head, top and bottom side are machined
  • side surfaces unmachined
  • drilling for fi xation bolts according to DIN 974-T1
  • for cylinder bolts with hex socket according to DIN EN ISO 4762
  • T-slots according to DIN 650
  • T-slot(s) with lifting pocket(s) at both ends
  • lengths up to 3 000 mm

Single Slot

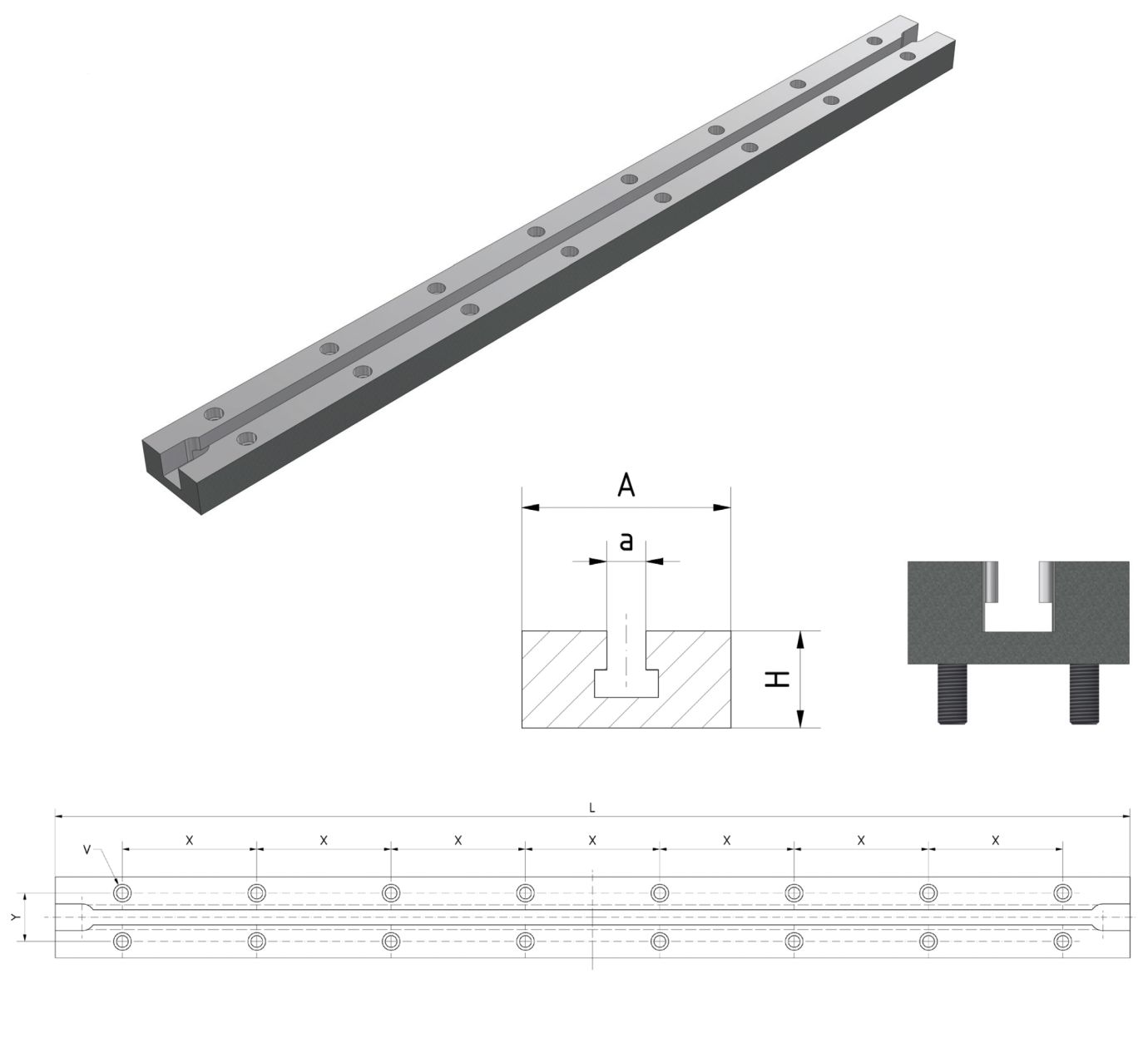

Design S2-1

T-Slot according to DIN 650Width A [mm]Height H [mm]Screw size
Drilling distance X [mm]Drilling distance Y [mm]Weight [kg/m]
14 H127040M10 x 452004518
18 H128050M12 x 552005025
22 H1210050M16 x 602006029
28 H1215170M20 x 802509067
36 H1216090M24 x 1002509586



Double Slot

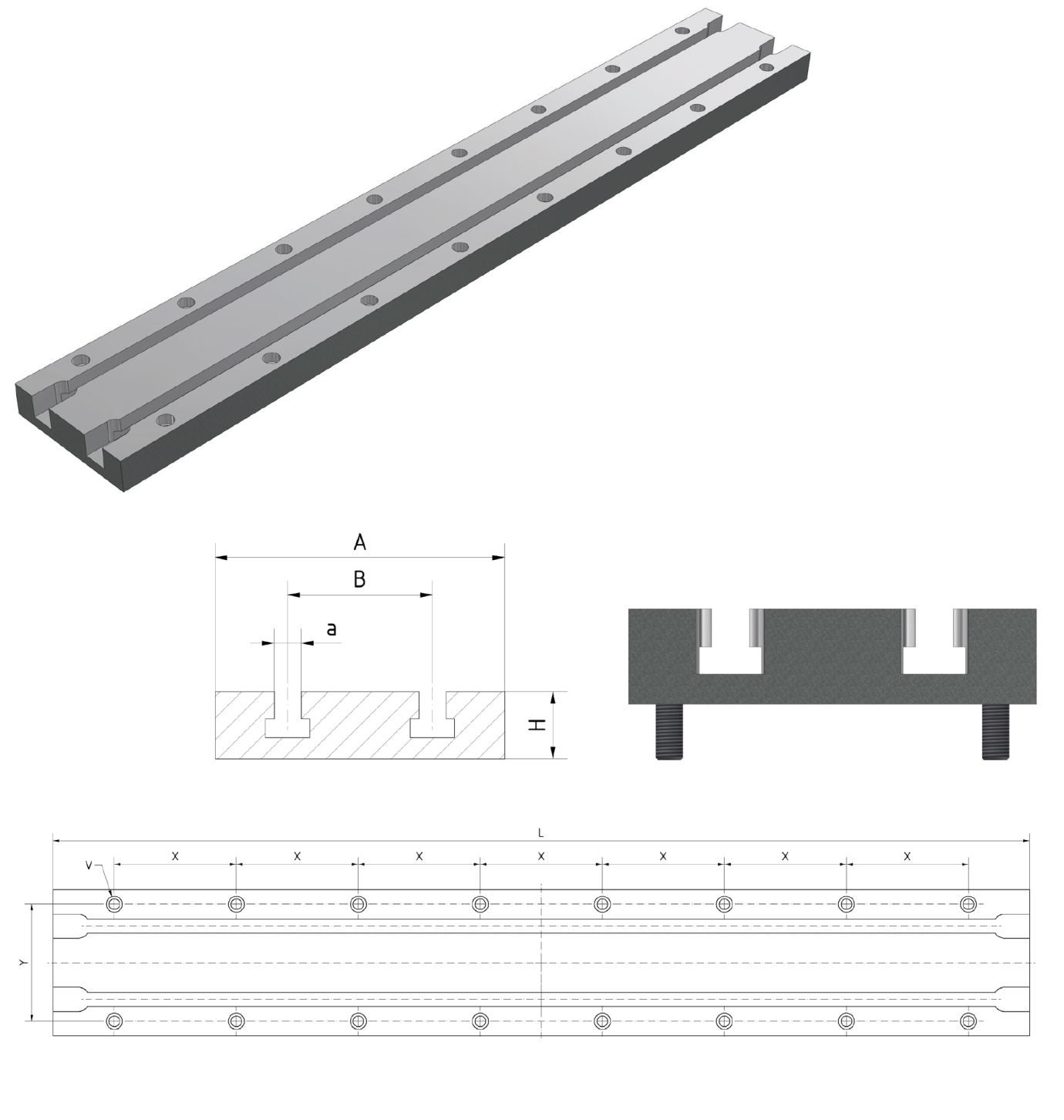

Design S2-2

T-slot according to DIN 650Width A [mm]Height H [mm]Slot Distance B [mm]Screw sizeDrilling Distance X [mm]Drilling Distance Y [mm]Weight [kg/m]
14 H121404070M10 x 4520011537
18 H121605080M12 x 5520013051
22 H1220050100M16 x 6020016060
28 H1230070150M20 x 80250240135
36 H1230090150M24x100250245161



Bauform S3

Zum Aufschweißen auf einer plan bearbeiteten Stahlfl äche

  • Kopf-, Ober- und Unterseite sind mechanisch bearbeitet
  • Seitenfl ächen unbearbeitet
  • T-Nut nach DIN 650
  • T-Nut(en) mit Aushebetasche(n) an beiden Enden
  • Längen bis 3 000 mm

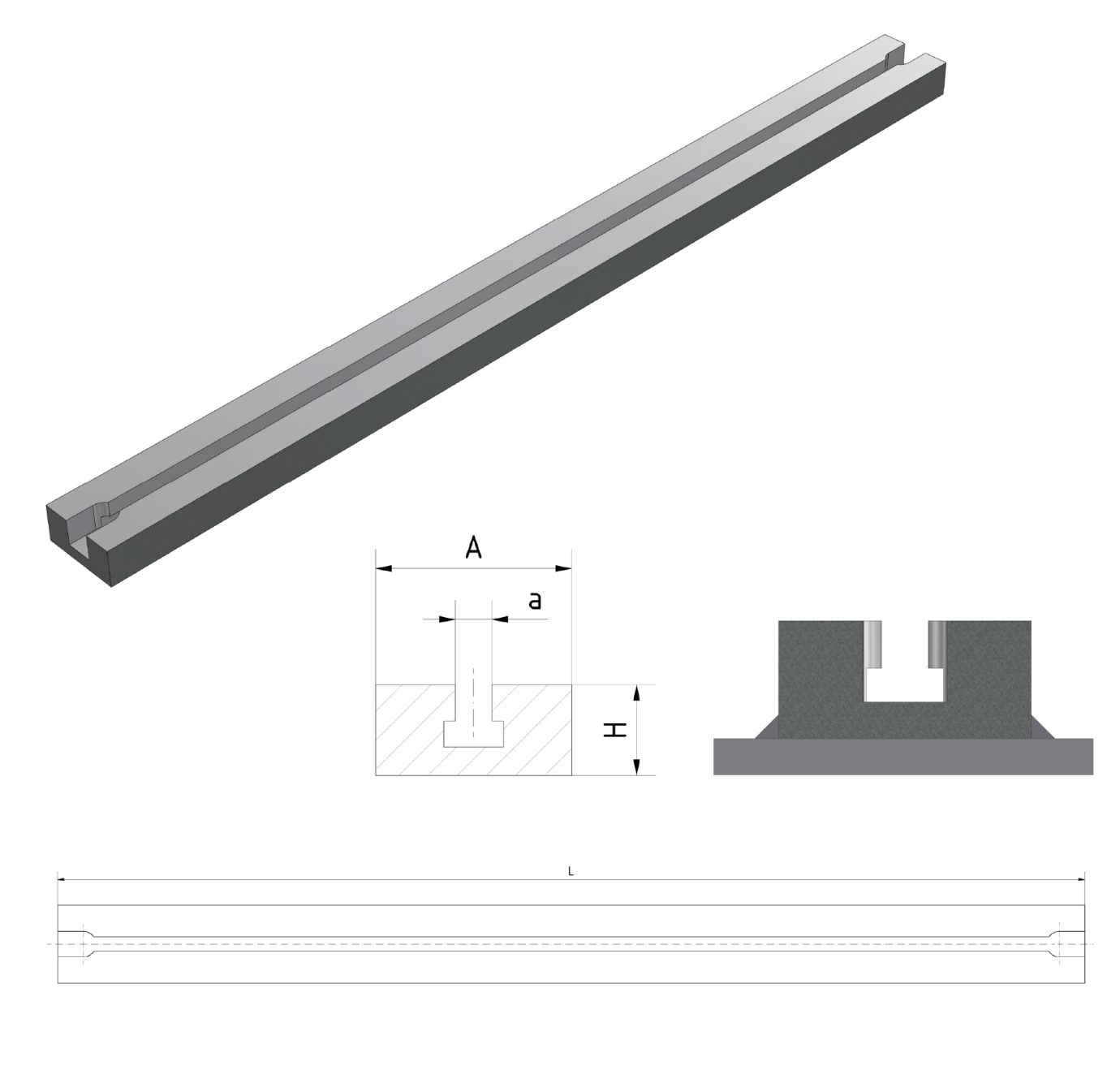

Bauform S3-1

T-Nut a nach DIN 650Breite A [mm]Höhe H [mm]Gewicht [kg/m]
14 H12704018
18 H12805025
22 H121005029
28 H121517067
36 H121609086

Aufspannschienen mit Spannnut

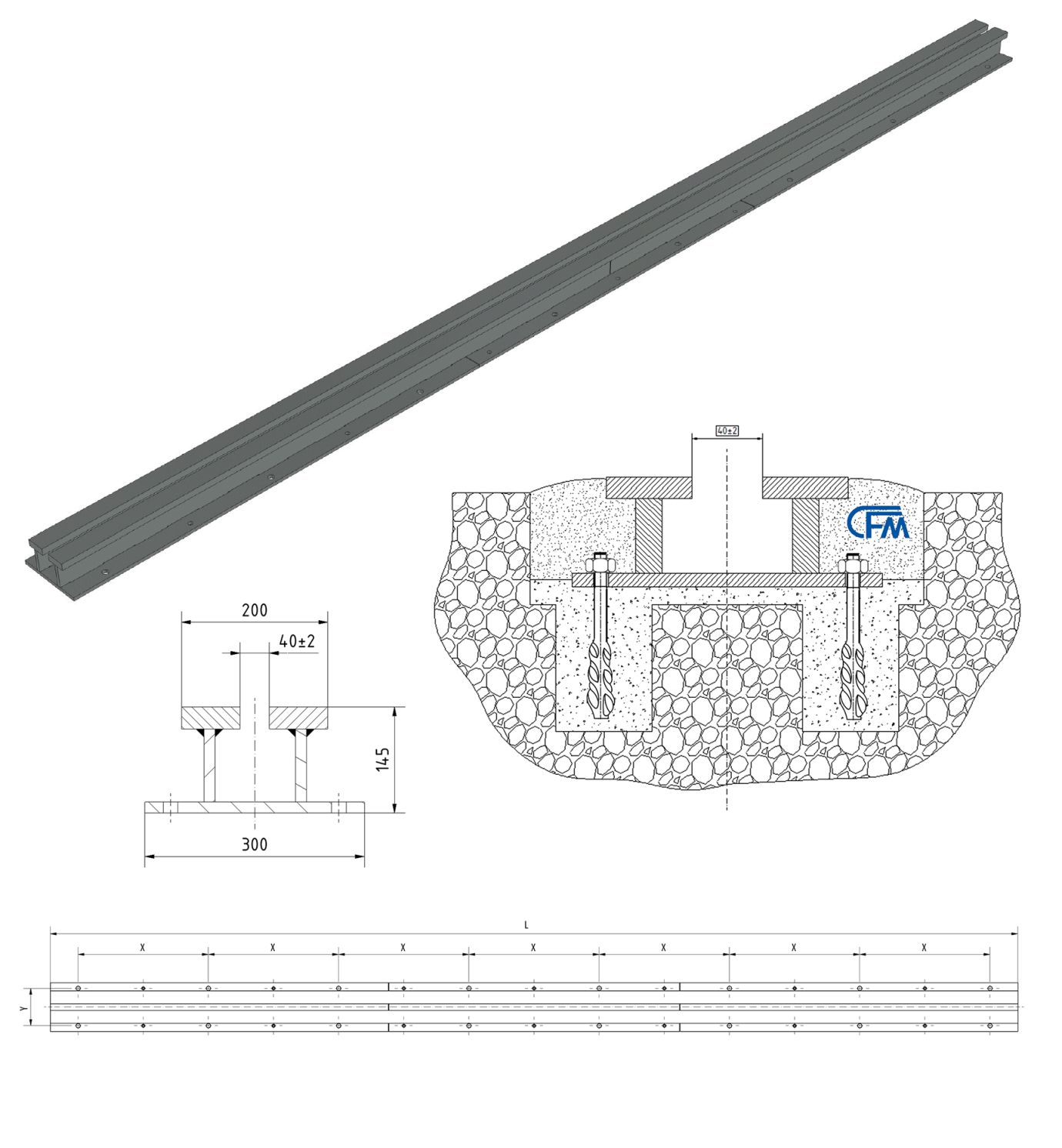

Bauform SP S1-40

  • mit Befestigungsfl ansch
  • zum Verankern auf einem Betonboden oder Betonfundament
  • Oberseite ist mechanisch bearbeitet
  • zum Eingießen (in Boden eingelassen)
  • Oberseite nicht mechanisch bearbeitet
  • Steinschrauben nach DIN 529 M24
